How to Remove the micro SD Card Print

Created by: Suri M.kool

Modified on: Fri, Jul 23, 2021 at 10:04 AM

SmartTerra stores the sound loops on the micro SD Card. The figure below shows where the SD card is mounted on the board.

To remove the SD Card, we will need to tilt the mainboard out in order to remove the SD card

Required Tools

-Phillips screwdriver

1. Make sure that the unit is off and unplugged

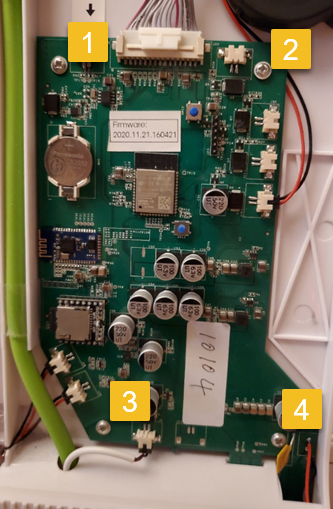

2. Remove screws 1 and 2

3. Loosening screws 3 and 4 enough that we can tilt the board out from the top

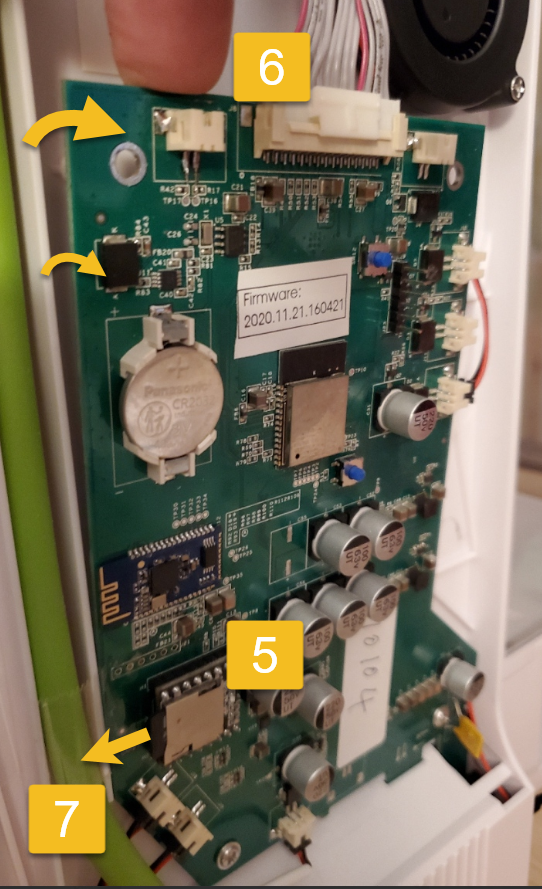

4. Push in to release the SD Card from the slot (5)

5. Tilt the board out enough that you can pull out the SD Card (6)

6. Pull out the SD Card (7)
